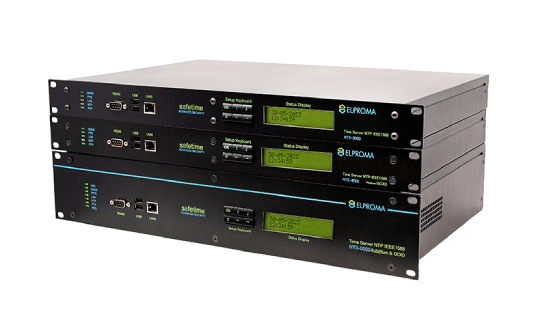

model NTS-3000

Network Time Server (1U)

GNSS NTS-antenna

active GNSS receiver

holdover OCXO

extra feature*

low-noise NTP TCXO

extra feature*

sync PROTOCOL

NTP, PTP IEEE1588, IRIG

NTP

RFC5905, RFC1305, RFC5906, RFC5907, RFC5908, RFC5909

SNTP

RFC4330, RFC2030, RFC1769

PTP

IEEE1588:2008 (software)

IRIG-B

digital (rs232)

freqency INPUT

1PPS (BNC 50 Ohm)

TIME/DAYTIME

RFC(867-8) extra feature*

#LAN

2x

speed LAN

100/10Mbps (RJ45)

performance LAN

1mln req/minute

TCP/IP

IPv4, IPv6, TCP, UDP

MANAGEMENT

HTTP, HTTPS, SSH, TELNET, SNMP v2 V3, RADIUS

SECURITY

Autokey, DSA, SSL, MD5, RSA

SYSLOG

yes

accuracy GNSS

better than 15ns

#SBAS

yes (EGNOS, WAAS)

extra SUPPORT

GALILLEO* BEIDOU*

std. SUPPORT

GPS, GLONASS

interface GNSS

2x (RJ45 rs485) w/PPS

accuracy INTERNET

better than 10ms

accuracy VLAN

better than 100us

accuracy LAN

better than 10us

#1FREQ

1575.42MHz (L1 GPS)

#2FREQ

1598.06-1605.38MHz

#CHANNELS

32-170

max DISTANCE

0.7km[2300ft] UTP cat5

max DISTANCE

1.4km[4500ft] STP cat5

interface rs232

2x (D-SUB9)

interface USB 2.0

2x (firmware support)

size RACK”19

1U (484x300x44,4mm)

weight NETTO

5kG (6kG BRUTTO)

box SIZE

520x380x250

operating TEMP

0C+50C

storage TEMP

-40C+85C

%HUMIDITY

up to 95%

std. POWER

IEC/EN 60320-1, 110-230VAC max.55W
